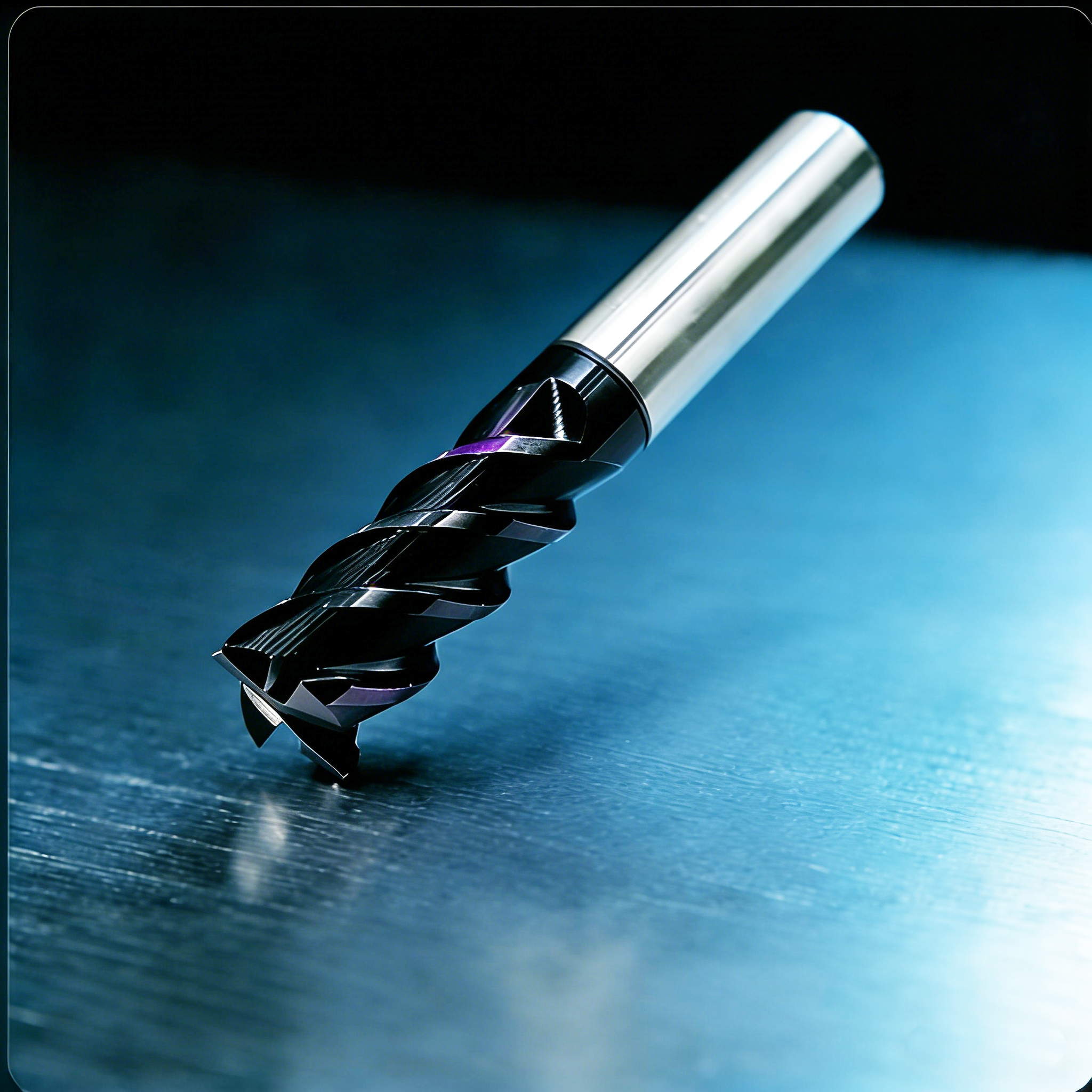

High-Performance 4-Flute Square End Mill
Specialized for Stainless Steel (SUS304/316). Features Unequal Indexing and Polished Flutes to eliminate chatter and prevent chip sticking.
38°/40° Variable Helix
0.4µm Ultra-Fine Micro Grain Carbide
Engineered for Excellence
Every detail is optimized for peak performance in the most demanding machining environments.
Anti-Vibration Unequal Pitch
Unequal Indexing
Asymmetric geometry disrupts harmonic vibrations (chatter), enabling heavier cuts and higher feed rates with a smooth surface finish.
High-Performance Chip Evacuation
Polished Flutes
Ultra-smooth mirror-finish flutes reduce friction, ensuring rapid chip evacuation and preventing chip packing or sticking on SUS304/316.
Ultra-Fine Micro Grain Carbide
Premium Substrate
Tungsten Carbide provides the perfect balance of hardness (HRC55-HRC65) and toughness to prevent chipping under high stress.
Advanced Coating
AlTiN / TiSiN
High heat resistance and low friction coefficient prevents Built-Up Edge (BUE) and dramatically extends tool life.
Rigid Geometry
Large Core Diameter
Ensures maximum rigidity and reduces deflection, further enhancing accuracy and stability during heavy machining.
h6 Shank Tolerance & Run-out Control
Precision Ground
Shank diameter tolerance controlled within h6, ensuring tight run-out for high-precision CNC setups.
High Performance Solid Carbide End Mill Specifications
Engineered with Variable Helix technology, specifically Designed for Stainless Steel (SUS304/316), Titanium, and high-temp superalloys.
Key Applications
High Performance Side Milling
Variable Helix geometry eliminates harmonic vibration, ensuring mirror finishes even when machining tough Stainless Steel at high speeds.
Heavy Slotting in Stainless
Specialized flute design provides superior chip evacuation, preventing work-hardening when slotting Stainless Steel (304/316).
High-Efficiency Face Milling
Large core diameter design ensures rigidity for high-feed face milling, delivering mirror finishes even on uneven surfaces.
| Parameter | Value |
|---|---|
| Product Type | High Performance Square End Mill |
| Flute Count | 4 Flutes |
| Geometry | Variable Helix & Unequal Index |
| Helix Angle | 38°/40° Variable Helix |
| Application | Designed for Stainless Steel, Exotic Alloys |
| Substrate | 0.4µm Ultra-Fine Micro Grain Carbide (12% Cobalt) |
| Coating | High-Heat AlTiN / TiSiN (Anti-BUE) |
| Hardness | Optimized for HRC45 to HRC65 (Hardened Steel) |
| Shank Tolerance | h6 |
| End Type | Square |
| Surface Finish | Polished (Mirror Finish) |
Partner With Us Today
We value every partnership and offer exclusive support to help you test our quality and grow your business.
Risk-Free Trial Program
Confident in our quality? We are too. Qualified businesses can request complimentary samples to verify performance before bulk commitment.
Request SampleNew Partner Incentive
Start our partnership on the right foot. Enjoy a flat $50 USD credit on your initial order of $500+ to experience our premium service.
Claim OfferTiered Volume Pricing
Unlock exclusive distributor pricing and tiered discounts for bulk orders. Contact our sales team for a custom quote tailored to your annual volume.
Get a Quote

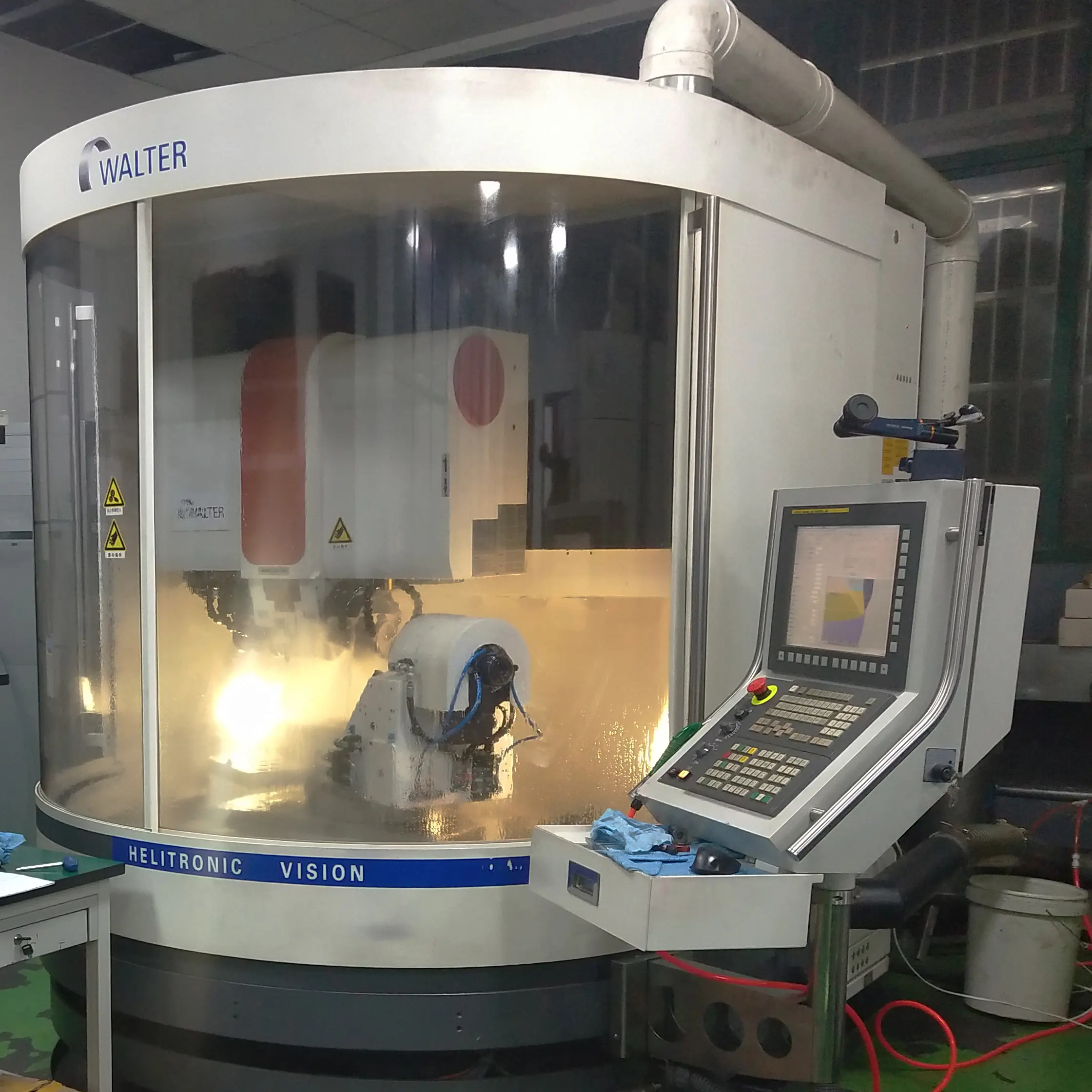

Powered by ANCA & Walter
Precision is not just a promise; it's our standard.
At QT TOOLS, we believe high performance starts with the best foundation. Our facility is powered exclusively by original ANCA and Walter CNC grinding machines, ensuring every flute and geometry meets strict aerospace tolerances.
We utilize premium Ultra-Fine Micro Grain Carbide substrates sourced from world-leading suppliers. By combining top-tier European machinery with China's intelligent manufacturing efficiency, we deliver Tier-1 tool life at a competitive advantage.
Founded
2008
Production Capacity
50,000+ Pcs/Month
ISO Certified
9001:2015
Grinding Machines
100% ANCA & Walter
